60 HT / CRANCHI

Specifications

Length overall approx. 60 ft 8 in
Length hull approx. 54 ft 4 in
Beam max approx. 15 ft 10 in
Draft (incl.props) approx. 4 ft 3 in
Height above waterline 17 ft 8 in
Construction height 9 ft 5 in
Dry weight approx. 51.800 lbs
Passengers and weight approx. 14/3.090 lbs
Fuel capacity approx. 462 UK gals 555 US gals
Fresh water capacity approx. 118 UK gals 142 US gals
Water heater capacity approx. 9 UK gals 10 US gals
Grey waste water tank capacity approx. 46 UK gals 55 US gals
Suites - cabins 3
Bathrooms 3
Guest cabin or crew cabin 1
Sleeping accomodations 6 + 1
Hull Aldo Cranchi
Design Centro Studi Ricerche Cranchi
Design category B

Standard features

Water distribution system directly from the dock Bilge micro-suction system Roll-up foldaway hose Grey water tank with electric pump
Waste water tank 208 l + drain pump and deck suction Acoustic and visual alarm on the dashboard for water in the bilge Anchor 30 kg with chain 50 m (12 mm) Volvo Penta anticorrosion kit
Fire extinguisher system: n. 4 automatic extinguishers in engines room + n. 4 manual extinguishers on board in the different cabins/compartments Air-conditioning 60.000 BTU cold water system, with heat pump Automatic autoclave pump Barometer and thermo hygrometer
Generator batteries 100 Ah / 12 V 120 Ah engines batteries (n. 4) for a total of 240 Ah / 24 V / n. 2 200 Ah for onboard services for a total of 200 Ah / 24 V Retractable cleats on the platform 40 l water heater
40 Ah automatic battery-charger Electronic Safe N. 4 mooring lines N. 8 fender covers

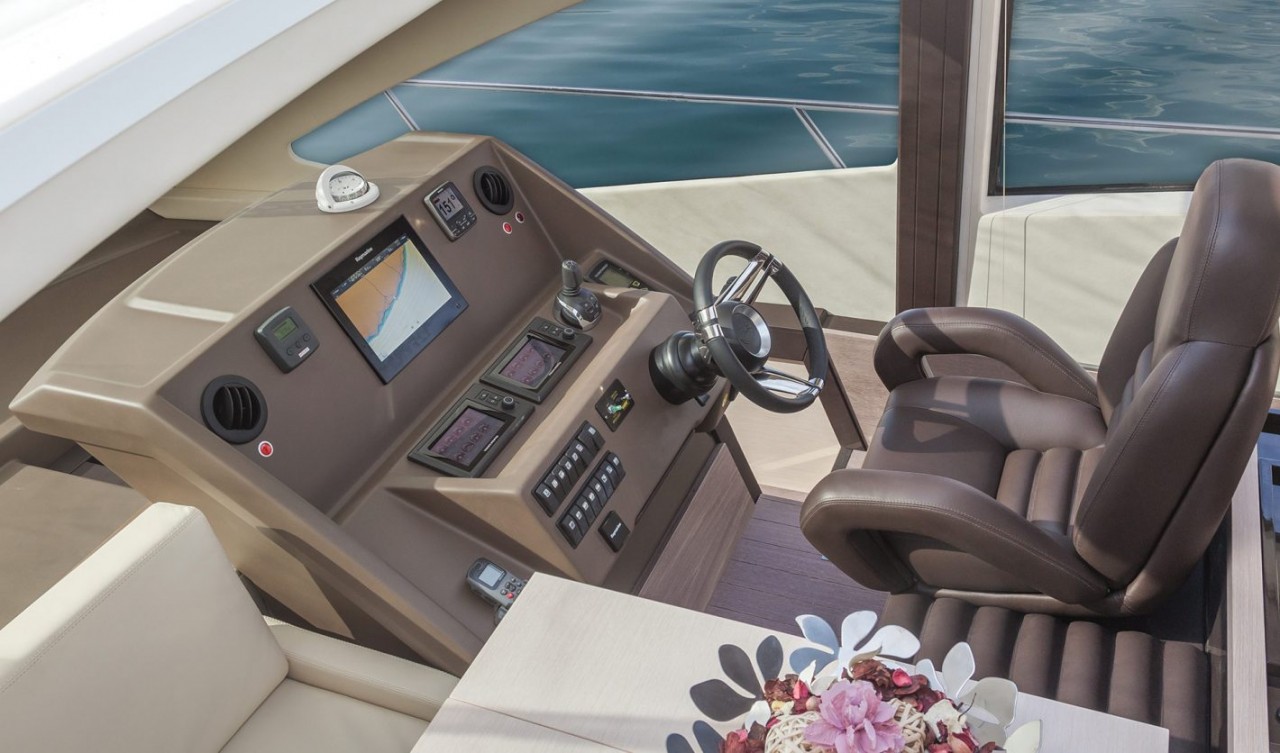

New generation trim tabs Interceptor Humphree Chromotherapy: RGB shower heads in master and Vip cabins Dashboard with magnetic compass + digital engines instruments + n. 2 LCD 7" colour EVC-E (echo-log and mile counter) Bow sunbathing cuschion with stainless steel handles and cover; loudspeakers, radio control, tin holder, objects holder, 12 V plug
Digital switch system for management and control of the lights, air conditioning, generator, electric windows, up-down TV device and monitoring /management of levels, iPad interface for management from the tablet Aft cockpit sofa Aft and bow shower warm/cold Double fuel filler
Echo-sounder (temperature-depth) integrated in the plotter instruments Search light Filters with fuel/water separator Combi oven with microwave
130 l kitchen refrigerator, 165 l refrigerator (with freezer) in cabin near the staiways Stern storage with hydraulic opening 20 kw generator Colour cartographic GPS GS125 series 12" Glass Bridge + antenna
Electric system 24V/DC 230V/AC Dishwasher Laundry and utility room Courtesy and interiors lights on the floor (internal and external)
Stainless steel anchor protection with fairleads for mooring ropes Fenders n. 8 4-burners cooktop in glass-ceramics with touch control Automatic pilot
Up/Down hydraulic stern platform for dinghy haulage capacity 250/300 kg Electric bilge pumps: n. 3 manual and automatic + n. 2 manual Triple opening saloon door 50 Ah / 230 V shore power and marine shore power cable
Stereo Radio Fusion FM/AM I-POD / USB with amplifier and subwoofer, marine type, with control and loudspeakers in the cockpit and on bow deck Stainless steel swimming ladder, n. 2 one of which foldaway Joystick control system + trip computer + single lever + cruise control Emergency electronic and manual battery switches
Teak laid steps to the platform Teak laid swimming platform Saloon side and cabins curtains Widescreen wipers with electric washer
Electronic steering and electronic engines control Anchor winch 1700 W + remote control with integrated meter counter + bow push button controls N. 2 stern 1000 W stern winches with warping bells VHF-DSC
N. 3 Vacuum Flush toilet, with electric controls and servo-assisted closure Wine cellar Mosquito net on portholes and mosquito net/blind on deck hatch
